PRODUCTS / DRILL DRIVES / Conical log splitters KHS 120

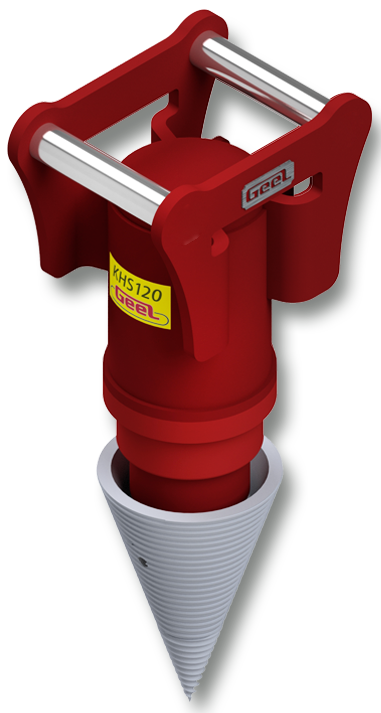

Conical log splitter KHS 120
The ideal attachments for the efficient and safe shredding of tree trunks and tree roots.
The main applications are pre-splitting for feeding chipping plants as well as the splitting of logs for lumber drying. The diameter of the logs is irrelevant.
Softwood and hardwood logs can be split.
Problem-free splitting of wood that is particularly difficult to split (e.g. poplars).
The high torques are generated by planetary gears.
Preferably excavators from 8 t to 15 t are used as supporting devices.
Greatest economic efficiency due to minimum maintenance costs.
A tip damaged by coming into contact with ground that is too hard is easy to replace.
Simple conversion to an auger possible.
DOWNLOAD INFO SHEET
Suitable attachments
Die Modelle im direkten Vergleich
| KHS25-ECO | KHS25 | KHS35 | KHS50 | KHS70 | KHS120 | |
|---|---|---|---|---|---|---|
| Machine class (t) | 1,5 - 2,5 | 1,5 - 2,5 | 3 - 5 | 4,5 - 8 | 8 - 9 | 9 - 15 |
| Oil supply (l/min) | 27 - 65 | 27 - 65 | 40 - 85 | 40 - 95 | 50 - 115 | 70 - 150 |
| Max. pressure (bar) | 240 | 240 | 240 | 240 | 260 | 240 |
| Max. torque (Nm) | 2840 | 2840 | 3614 | 5050 | 6820 | 12610 |
| Shaft dimension (mm) | 2"hex | 2"hex | 75 | 75 | 75 | 75 |
| Weight (kg) | 73 | 73 | 130 | 130 | 130 | 188 |
